MSM - Intro to Electronic Music Spring Semester
Spring Class 1: Intro and Aesthetics of Mixed Music
Reading: History of Mixed Music Article
Historical Survey of mixed works:
Instrument + Tape
Nono
Stockhausen
- Steve Reich
Instrument + Amplification
George Crumb
Stetson
Instrument + Processing
Static or analog control
Davis, Bitches Brew “Bitches Brew”
IRCAM model (early digital)
Boulez, Repons (1981)
Saariaho
Instrument + AI
George Lewis (if/then)
Interactive Trio (2011)
Neural Networks
Instrument + Commercial Software
Logic / Live / Cubase for live performance
Popular music and bands approach
Instrument + robotics/physical devices
Instrument + Video
Nicole Lizee
Katana of Choice (2018)
Oscar Escudero
Big Data: Custom #3 (2016)
Recent Mixed works
David Bird
Apocrypha (2017)
Nina Young
Sun Propellor (2012)
Mary Kouyoumdjian
Dandelion (2010)
Ryuchi Sakamoto
Andata (2017)
Spring Class 2: Notation of Mixed Music and Technical Riders
>>Template for Technical Rider<<
The Notation of Electronics
There is no standard way of notating electronics. However, the basic principle one should follow is to notate the electronics in a clear and concise way that provides all of the information the performer needs to synchronize and react musically. Each piece using electronics will require a slightly different approach, but the following list of items to consider may help:
• Rhythmic information
• Dynamic information
• Pitch information
• A time code if using click track or clock synchronization
• Graphical representation of the electronic sound
• Proportional notation
• Markings to differentiate sound files from real-time processes
• Loudspeaker assignment of the sound
• Textual description of the sound file or real-time process
• Cue number that links to the devices/software used (ie where new sound files may begin and end or some process is triggered)
Just like the technical rider, the notation of the electronics should present all necessary information clearly in such a way that the work could be realized without the presence of the composer.
Score examples:
Nina Young provides all the basic information in her score and notates the electronics in the score itself clearly and succinctly for the performer. A separate technical rider is provided that goes into precise details and allows the piece to be realized by a third party technician without any additional information from the composer.
score
violin and tape
Mary Kouyoumjain provides a detailed Technical Rider in her score and notates the electronic component of the piece clearly. The electronic component is largely drone-like in nature, and is provided with a mixture of traditional and graphic notation.
recorder and electronics
Kokoras uses the combination of stopwatch markings with the visual indications of the spectrogram in the score. This is most effective for pieces that do not require precise synchronization but more of a general idea of the electronic sound.
flute, piano, and electronics
Temple notates the electronics in a hybrid fashion - providing notes, words, and rhythms in traditional notation where possible and embellishing this traditional notation with graphic illustrations.
3 voices and computer
More generalized instructions to a technician who acts as a performer of the electronics.
Dan Trueman - Nostalgic Synchronic Etude 1
midi keyboard
Electronic sounds are worked into the performers staff as smaller notes with triangle noteheads.
four voices
Saariaho uses two microphones with different processing and indicated which microphone the singers should be singing into in the score.
Spring Class 3: Microphones + Recording into Logic
Microphone Types:
Dynamic Microphone
Dynamic microphones use thick diaphragms and tend to accentuate the middle range of the frequency spectrum. These microphones tend to be highly durable and do not require phantom power.
Condenser Microphones
Condenser Microphones have thinner diaphragms than dynamic microphones and are therefor less durable but more capable of capturing high frequencies and generally record with a higher fidelity. Condenser Microphones require phantom power to boost the signal for recording.
Ribbon Microphones
RIbbon microphones use a long and thin diaphragm and generally provide a more colored or warm quality in their recordings. Ribbon microphones are usually quite fragile and can difficult to use. Ribbon microphones, like Condensers, require phantom power.
Additional Microphone Resources:
Polar Pattern Summary
What is Phantom Power?
Microphone Frequency Response
What is Proximity Effect?
Spring Class 4: Perception of Space and Stereo Recording
Mono versus Stereo Recording
Mono = one audio source
Stereo = two audio sources
Stereo Standard Microphone Techniques:
Spring Class 5: Advanced Editing + MIDI
VST instruments
MIDI basics
MIDI piano roll in Logic Pro
MIDI note numbers:
Aftertouch
Pitch Bend
Control Changes:
0 Bank Select (MSB)
1 Modulation Wheel
2 Breath controller
3 Undefined
4 Foot Pedal (MSB)
5 Portamento Time (MSB)
6 Data Entry (MSB) - cc100=0 & cc101=0 is pitch bend range
7 Volume (MSB)
8 Balance (MSB)
9 Undefined
10 Pan position (MSB)
11 Expression (MSB)
12 Effect Control 1 (MSB)
13 Effect Control 2 (MSB)
14 Undefined
15 Undefined
16 Ribbon Controller or General Purpose Slider 1
17 Knob 1 or General Purpose Slider 2
18 General Purpose Slider 3
19 Knob 2 General Purpose Slider 4
20 Knob 3 or Undefined
21 Knob 4 or Undefined
22-31 undefined
32 Bank Select (LSB)
33 Modulation Wheel (LSB)
34 Breath controller (LSB)
35 Undefined
36 Foot Pedal (LSB)
37 Portamento Time (LSB)
38 Data Entry (LSB)
39 Volume (LSB)
40 Balance (LSB)
41 Undefined
42 Pan position (LSB)
43 Expression (LSB)
44 Effect Control 1 (LSB)
45 Effect Control 2 (LSB)
46-63 Undefined.
64 Hold/Sustain Pedal (on/off)
65 Portamento (on/off)
66 Sustenuto Pedal (on/off)
67 Soft Pedal (on/off)
68 Legato Pedal (on/off)
69 Hold 2 Pedal (on/off)
70 Sound Variation
71 Resonance (Timbre)
72 Sound Release Time
73 Sound Attack Time
74 Frequency Cutoff
75 Sound Control 6
76 Sound Control 7
77 Sound Control 8
78 Sound Control 9
79 Sound Control 10
80 Decay or General Purpose Button 1 (on/off)
81 Hi Pass Filter Frequency or General Purpose Button 2 (on/off)
82 General Purpose Button 3 (on/off)
83 General Purpose Button 4 (on/off)
84-90 Undefined
91 Reverb Level
92 Tremolo Level
93 Chorus Level
94 Celeste Level or Detune
95 Phaser Level
96 Data Button increment
97 Data Button decrement
98 Non-registered Parameter (LSB)
99 Non-registered Parameter (MSB)
100 Registered Parameter (LSB)
101 Registered Parameter (MSB)
102-119 Undefined
120 All Sound Off
121 All Controllers Off
122 Local Keyboard (on/off)
123 All Notes Off
124 Omni Mode Off
125 Omni Mode On
126 Mono Operation
127 Poly Operation
In Addition to Standard MIDI, the VST instruments that come with Logic use what they call “fader” values that may be automated but aren’t necessarily hooked up to a MIDI control. These faders can be found in the same way that you automate things like volume and panning on an audio track. Additionally you can connect them to a midi controller using the “midi learn” function.
VST instruments packed into Logic Pro: https://www.apple.com/logic-pro/plugins-and-sounds/
Spring Class 6: Basic Synthesis
Analog vs Digital Synthesizers:
The difference between digital and analog synthesizers are that digital synths use digital processors and analog synthesizers use analog circuitry. The earliest analog synths typically used vacuum tubes, which were eventually replaced by transistors to create waveform oscillators, filters, and other sound processing modules. There is much debate over which sounds better, which is a highly subjective issue.
Analog synths, especially older ones, tend to have a particular color to their sound, often described as a “warmth” or “individuality” and because they do not require a DAC, the fidelity of the sound will not be altered by this conversion to voltage from the digital realm.
Digital synths tend to be more accessible, easier to use/record, and since the 1990s are able to be much more feature-rich than their analog counterparts. For example, granular and sample-based synthesis is much easier to realize with a digital synth and the number of oscillators and filters are essentially limitless on a modern CPU.
Modular Synthesis:
Modular synthesis may involve any type of synthesis, with modules of waveform oscillators, Low frequency modulators, ADSR filters, and so on as possible modules. Most synthesizers are modular in design.
From www.synthesizers.com
ADSR filter:
An important part of nearly every synthesizer is the ADSR, or Attack-Decay-Sustain-Release, which provides the “shape” of the notes.
Additive Synthesis:
Every sound could theoretically described as a combination of sine tones. This concept will be explored more in the class on spectral techniques, but is also the basis for additive synthesis.
Basic Schematic:
Historical examples:
Earliest commercial example, Hammond Model A (1936): https://www.youtube.com/watch?v=8PpCJVBKcp0
Haskins Laboratories cerca 1950 realizing speech synthesis:
http://www.haskins.yale.edu/featured/sentences/ppsentences.html
The Harmonic Tone Generator form the University of Illinois (1974): https://web.archive.org/web/20131228061841/http://ems.music.uiuc.edu/beaucham/htg_sounds/
Digital Synthesizer from Bell Labs was the first digital synth (1977): http://retiary.org/ls/music/realaudio/ob_sys/05_alles_synth_improv.rm
The Synclavier II (1979) offered a way to interpolate between different timbres. This system had both additive, frequency modulation, and sample-based capabilities and was used extensively by Frank Zappa in the latter half of his career:
Demo: https://www.youtube.com/watch?v=ikHtUq48rWE
Zappa: https://www.youtube.com/watch?v=UrOK98q_ILA
Grammy-winning Jazz from Hell: https://www.youtube.com/watch?v=WtDa1Wk5YBk
In Contemporary music, Additive synthesis was used extensively by Tristan Murail both as electronic parts as well as a theory of orchestration in works such as Allégories (1990). The most famous example of all would be Partiels, by Grisey, who uses the principles of additive synthesis to turn the timbre of a low E on a trombone into a harmony:
Subtractive Synthesis:
Filtering of a sound source, most often a wave form or noise generator. Typically, the sound source to be filtered (ie subtracted from) should be rich in harmonics, which makes it more useful to realize timbres using the subtractive method of synthesis.

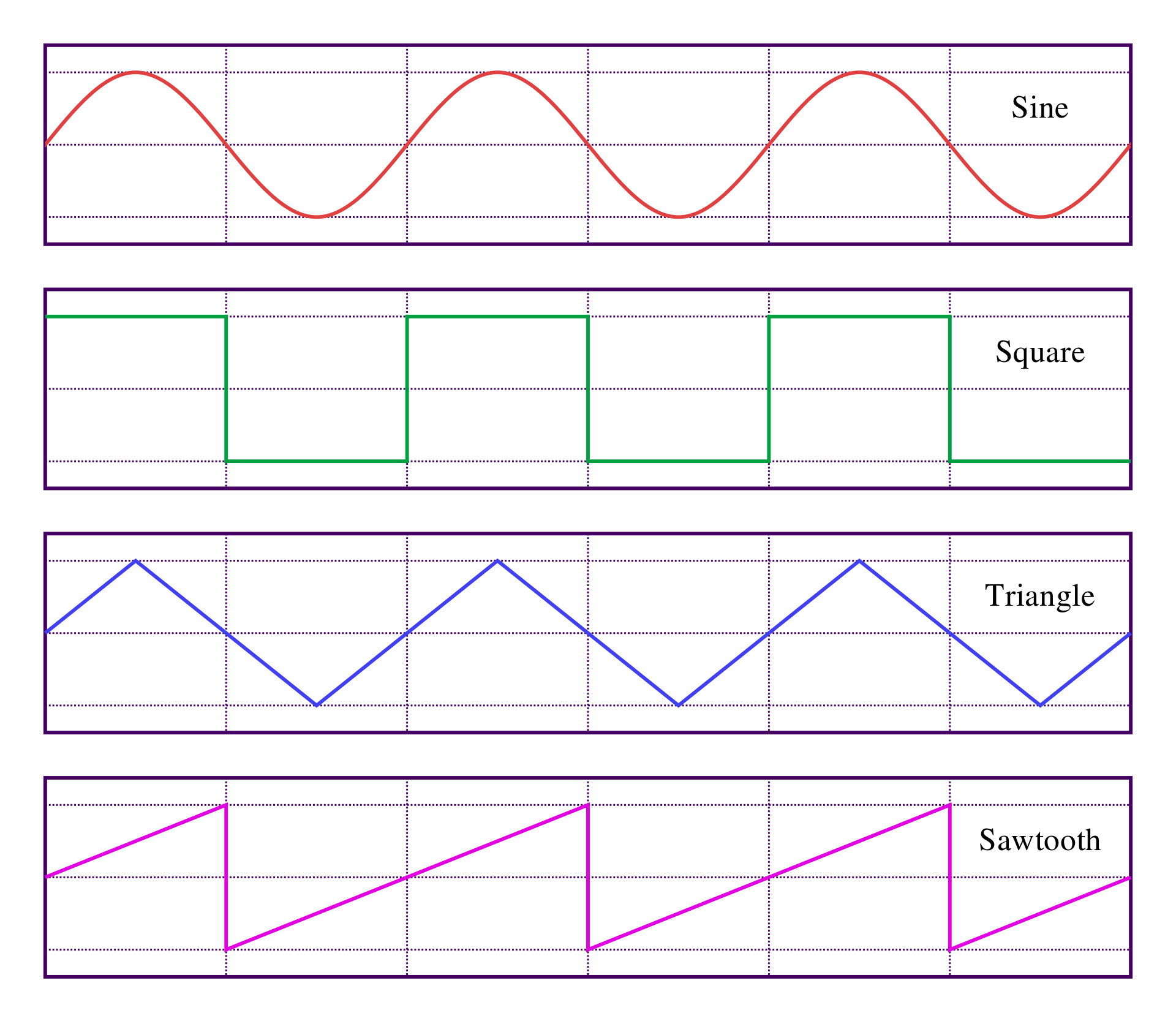

Typical sound sources in subtractive synthesis:
sine wave: a pure tone, not very useful for subtractive synthesis because it contains no harmonics
sawtooth wave: rich overtones, nasal sounding
triangle wave: odd harmonics, clarinet-like
square wave: thick and brassy
pulse generator: thick and warm, variable timbre
Wavetable: see below
noise generator: white, pink, or brown noise - rich in spectral content and completely harmonic. In theory, white noise has an equal level of energy throughout the entire frequency spectrum.
The above sound sources will then be filtered by low pass, high pass, comb, and other types of EQs as well as an ADSR (attack, decay, sustain, release) filter.
Frequency Modulation Synthesis:
The first digital synth of widespread popularity, the Yamaha DX7, used FM synthesis as devised by John Chowning. For FM synthesis you need two waveform oscillators, one to act as the carrier and the other as the modulator. The frequency of the carrier is modulated by the modulator, resulting in the original frequency plus sidebands that are the sum and difference between the carrier and modulator.
FM synthesis is therefore able to produce complex timbres with very basic means and the sound of FM synthesis is often described as “bell-like.”
Van Halen’s “Jump” features the DX7, which was also a favorite among contemporary composer like Gyorgi Ligeti because of its microtonal capabilities.
https://www.youtube.com/watch?v=SwYN7mTi6HM
From Logic Pro Documentation
Physical Modeling:
A type of synthesis that uses a mathematical model to imitate the physical, acoustic creation of sound. The Sculpture synth is Logic is a physical modeling synth. Typically a physical model will feature modeled exciters (pluck, bowed, struck, scraped, blown, etc), sound source type (string, membrane, tube, etc.) and resonant body attributes (size, shape, material type, etc.).
This type of synthesis is generally less developed and more “experimental,” though there are now a few commercial VST instruments that rely on physical modelling, the most successful among them is pianoteq, which features physical models of various pianos, harps, harpsichord, and steel drum that sound surprisingly realistic. The advantage of this approach is that, ideally, the synthesis will sound very realistic and varied beyond the possibilities of a sampler instrument while also being very light on hard drive space and CPU usage.
from Princton “Computing Sound” from Perry Cooke
Wavetable/Vector-based Synthesis:
Introduced in the mid 1980s, wavetable/vector synths read the data stored in a matrix as a waveform. This allows for interesting interpolation effects between the timbres created by the wavetables. The Prophet Synth is the best known synthesizer of this type:
https://www.youtube.com/watch?v=cbKNICg-REA
From “audiofanzine.com”
Sample-based Synthesis:
In place of waveforms, these synthesizers generate sound using samples. The famous Lichtorgel that Scriabin wrote for is the earliest example of this in the analog domain, but the famous Mellotron instrument is also based on playing back a sample from magnetic tape. In logic the ESX sampler and electro-beat both have sample-based capabilities.
Granular Synthesis
Granular Synthesis is a particular type of Sample-based synthesis where an audio file is cut into very small “grains” of sound that can then be played back in a variety of ways. A grain can be anywhere from 30 milliseconds to several seconds in duration and their amplitude generally follows a curve or window function that cross-fades with other grains.
Iannis Xenakis invented granular synthesis and first implemented it by cutting and splicing magnetic tape for his Analogique A-B for string orchestra and tape (1959).
Granular synthesis is particularly adept for time freezing effect or to create interesting micro variations in a sustained sound. For this reason, granular synthesis is often used in video games for sound effects to create interactive wind, fire, and other environmental sound.
from www.granularsynthesis.com
Spring Class 7: Spectral Techniques + FFT based Effects + Cleaning audio
Spectral Techniques
This class focuses on spectral techniques in processing, analyzing, and editing audio. The studio computer has two pieces of software that work in this way: Spear (which is freeware) and Audiosculpt (part of Ircam suite). These programs are different from standard audio editing programs because they are based on FFT analysis of sound, which allows for different ways to filter and edit the sound.
FFT (fast faurier transform) based effects
The faurier tranform is a method to analyze signals into their component parts that dates all the way back to 1805. For the purposes of audio, FFT will analyze a sound and break it down into its sinusoidal components. In FFT analysis these sine waves are considered to be infinite in time, and so the fft analysis must be applied to short grains of sound (windows) that are then recombined.
Audio file in -> FFT analysis -> Processing -> Resynthesis -> Audio file out
Cleaning Audio - gating versus filtering versus spectral approaches
FFT-based noise removal tends to be the highest fidelity way to clean audio, though it is very heavy on the CPU, especially when realized in real time. In class will compare noise gating, EQ filtering, and FFT noise removal as methods for cleaning noisy audio files.
Spring Class 8: Live Electronics in Logic Pro
using Logic Pro for Live processing and synchronizing electronics.
Spring Class 9: Preliminary Scores and Recordings Due
Review of scores, recordings, and technical riders.
Spring Class 10: Synchronization (click) + Listening Session
How to synchronize the lie performer with your electronic part
Click Track
Cues
Stopwatch
Score Following
Week 10: Listening session
Listening and critiquing your works in progress as a class
Week 11: Mixing a multi-track concert recording
Balancing room mics and close mics
Using busses
Automation
Compression and Riding
